    Gold Under The Counter Reverse Osmosis (RO) System - Click For More Info

    Manufacturer: FIlterShop.co.za
    The Gold Reverse Osmosis (RO) system comes with:
  • 10" Melted Spray (1um)
  • 10" Premium KDF Cartridge
  • 10" Pleated Filters (0.1um)
  • 10" T33 Taste and odour Filter
  • 200 GPD RO Membrane
  • Mineral Injector
  • Pressure Protection Valve
  • *
    *
    *
    R5 950,00
    i h

    Gold Under-Counter Reverse Osmosis (RO) System



    The Gold Reverse Osmosis (RO) system is one of the most complete under-the-counter systems available. It has the ability to eliminate up to 99.8% of harmful contaminants in water such as bacteria, viruses, lead, radium, chlorine, and arsenic. It makes use of multi-stage filtration technology.

    With the RO system, you can rest assured that your drinking water is clean, clear, and healthy.

    The Gold Reverse Osmosis system can be used with numerous source waters including Municipal, Borehole Hole, River, Rain Water, Etc.



    Other Reverse Osmosis Packages are also available:

    Silver Reverse Osmosis system

    Bronze Reverse Osmosis (Recommend for Municipal Source Water only)





    The Gold Reverse Osmosis System (RO) Includes the following:

    • 6 Stage Reverse Osmosis system (with or without a Booster Pump)
    • 200 GPD (Gallons Per Day) Reverse Osmosis Membrane
    • Bacteria Pre-Filters Set (Sediment Filter (1 Micron), Premium KDF, & Ultra Filtration Cartridge)
    • Mineral Injector
    • Pressure Protection Valve







    Benefits:

    • Maintenance is easy
    • Filtered water tastes and smells great.
    • Promotes a healthy lifestyle
    • Hidden away out of sight, only a chrome tap is visible
    • Removes 99.8% of all contaminants in water
    • Flushing of the membrane is done Automatically
    • The low mineral content water is great for detoxifying your body
    • The low mineral content water helps to prevent and dissolve kidney stones
    • Delivers up to 700 Liters (200 Gallons) of filtered water per day







    Gold Reverse Osmosis System Stages:



    • Stage 1: 10 Inch Sediment Filter (1 Micron) - Removes Particles, Dirt, Sand, Mud, Rust, and other large visible particles in the water. At 1 Micron You also start to capture some bacteria from the water.



    • Stage 2: 10 Inch Premium KDF Cartridge - Absorbs Chlorine, Heavy Metals, and Organic molecules (bad odors) from the water. The KDF also inhibits the growth of bacteria on the cartridges, extending their life spans.



    • Stage 3: 10 Inch 0.2 Micron Pleated Filtration Cartridge - 10" 0.2 Micron Water Filter replaced the Ultra Filtration Membrane as it dramatically reduces flush times making the system quicker to install and easier to maintain. This filter takes the bacteria load off of the RO membrane, helping to extend its lifespan.



    • Stage 4: Reverse Osmosis Membrane - Removes bacteria, viruses, heavy metals, pesticides, herbicides, and reduces the mineral content (TDS) of water.



    • Stage 5: T33 taste and odor filter - Absorbs any organic molecules that come off of the RO membrane.



    • Stage 6: Mineral Injector - Replaces some of the minerals lost during the Reverse Osmosis Process, changing the taste of the water.









    Keep in mind:

    • The Under the Counter RO requires a minimum of 3 bar water pressure to operate correctly, if your water pressure is low then you will need a system with a Booster Pump. Keep in mind that the Booster Pump will require electricity to operate.



    • The system has a water wastage rate of up to 4:1 due to constant flushing of the membrane, so for every 1 Liter of clean, filtered water produced, up to 4 liters will be used to flush the system.



    • The RO System removes 99.8% of the minerals from water, including those that are good for you. However, a mineral injector can be added to the system to replace some of the minerals if this is of serious concern.



    • An important thing to remember before installing any filtration systems is to check which pipe under the counter is bringing the water to the tap and what size the source piping is. The standard household piping size is normally 1/2" (12.7mm) or 3/4" (19mm) thick. Some older houses have copper piping size instead of a newer system and in such cases, the special attachment will be required to install the RO to the copper piping. In order to ensure that you do not have to buy additional adapters due to the connections not matching the piping, please check what type and size your piping is before ordering a filtration system.



    • A hole will have to be drilled into the counter or table where the RO tap will be placed.



    • The filters all have a certain life span and must be replaced to ensure that the system works effectively.



    • If the source water contains bacteria it may start to grow on the membrane and biofouling may occur.





    What's in the box?

    Here are the items and components that are included in the price:

    • Mounting bracket

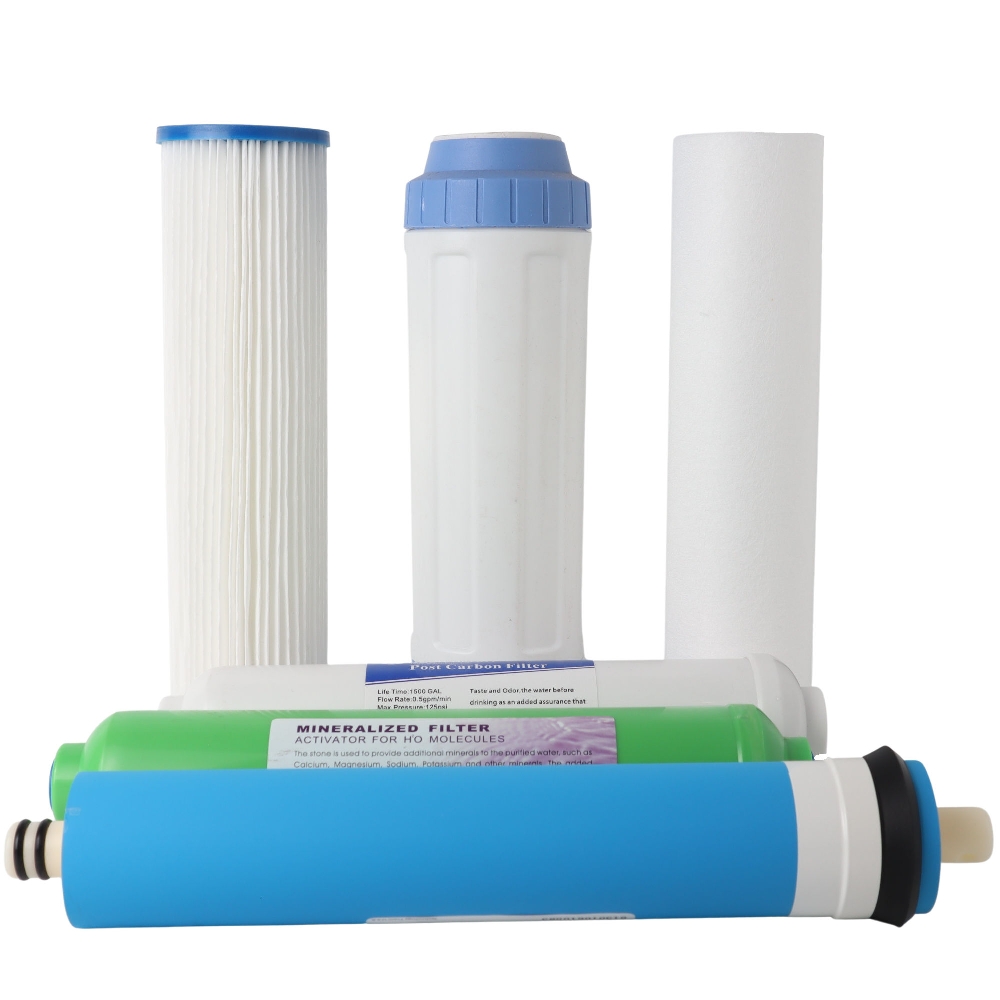

    • 10" Sediment Filter (1 Micron)
    • 10" Premium KDF Cartridge
    • 10" 0.2 Micron Water Filter replaced the Ultra Filtration Membrane as it dramatically reduces flush times making the system quicker to install and easier to maintain. This filter takes the bacteria load off of the RO membrane, helping to extend it's life span.
    • 200GPD (Gallons Per Day) Reverse Osmosis membrane
    • Inline Mineral Injector
    • 1 Plastic housing spanner (special tool for replacing the filters)
    • 1/4" White Tubing
    • 3 x 10" Filter housings
    • RO Membrane Housing
    • RO Tank
    • Chrome Tap
    • T33 Taste & Odour Filter
    • Pipe Fittings (Joints, Elbows, T-joints, Non-return valve, valves)
    • Flow restrictor
    • Plastic Pressure Protection Valve

    Not Included in the prices:

    • Plumbing and installation costs
    • Delivery costs (i.e. Courier / Shipping Charges)
    • Replacement Filters



    Filter System Installations:

    Filtershop now offers you the option to have your Filter Systems Installed by us. We do install in and around Centurion, Pretoria, and Johannesburg.

    If you are interested in having one of our technicians come to your home, business, or site to have a filter system installed, please contact us via email: [email protected] and we will get back to you with more information.



    Note: Additional charges for any type of countertop other than wood, may be charged, as special drilling will be required which makes use of a very unique drill bit.



    How To DIY Install:



    Pressure Protection Valve





    Filter Set Options



    • Bronze Reverse Osmosis System comes with Sediment Filter, GAC, and Activated Carbon Block



    • Silver and Gold Reverse Osmosis Systems come with either Sediment Filter, KDF, & Ultra Filtration (UF) cartridge, or  Sediment Filter, & 2 x KDF Cartridges





    Mineral Injector:

    The mineral injector helps to replace some of the minerals lost during the Reverse Osmosis (RO) process. The Mineral injector is filled with small beads of mineral, as the water passes through the mineral injector small amounts of minerals break away from the beads and are carried with the water. Our mineral injectors insert traces of potassium, calcium, magnesium, germanium, and iron.

    • Potassium: Potassium is vitally important for the functioning of all the cells in the body, especially in the maintenance of neurons (nerve and brain cells). It is also an essential micronutrient that - together with sodium, chlorine, magnesium, and calcium - plays an important role in maintaining the body's electrolyte balance.
    • Calcium: All the muscles, bones, and cells in the body require calcium to function. Calcium is also needed to facilitate the growth and maintenance of healthy bones and teeth.
    • Magnesium: Magnesium improves the function of the muscles, heart, and kidneys, by promoting the circulation of blood in the body. It helps to strengthen bones and teeth.
    • Germanium: Germanium is a plant-based mineral that has the property of being toxic to bacteria, but harmless to humans and animals. When ingested, it has also been found to stimulate the metabolism of the body. It also has the ability to absorb heavy metals and impurities from water.
    • Iron: Iron is one of the main components of hemoglobin, the substance that enables your red blood cells to transport oxygen around your body. It is also part of myoglobin, which enables muscles to store oxygen that is used for cellular respiration.
    • The Mineral injector has a life span of 12 months (1 Year) and then it will need to be replaced.



    DIY Filter Change:







    Interesting DIY Modification:



    This is an alternative way to connect the system that allows a much higher flow rate from the tap.





    Adds an alternative water point.











    Additional Options:



    Leak Detector:

    The Leak detector is installed on to the-under-the-counter unit and serves to protect against damage that may be caused by any leakage of the filter system.

    The leak detector will cut off the source water if there are any leaks coming from the main unit.

    Keep in mind that the leak detector will not stop leaks from the unit's source connector and faucet.





    Tank Size







    The Standard RO System comes with an 18 Litre RO Buffer Tank, which will hold between 6 to 12 liters of water. The tank can be upgraded to a larger tank is desired.







    Please note that the standard tank will be removed from the system if a larger tank is selected.







    Please also note that the larger tank will not fit in the same box as the RO system, so there would then be two parcels.

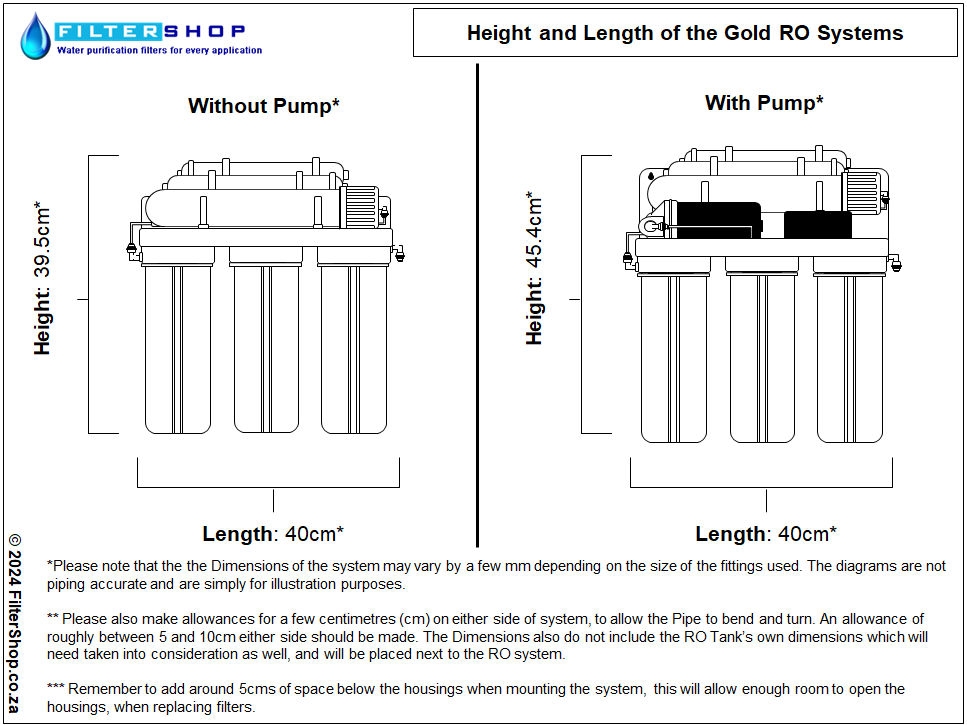

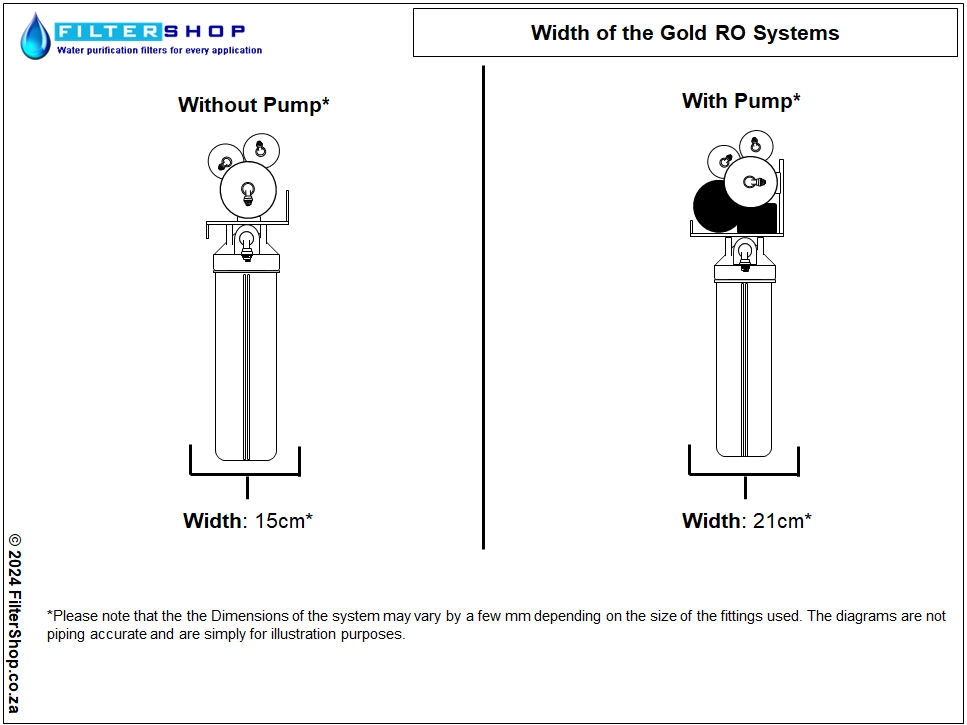

    Please see the tank Dimensions for the larger tanks below, please note that Filtershop cannot be held responsible if the tank is too large for the cupboard or area you want to install the RO system into.















    System Tap Design Options



    There are three different tap designs avaliable for the Filter System.



    Audio Leak Alarm



    *
    *
    *
