    Complete Home Ultra Filtration System

    Manufacturer: FIlterShop.co.za
    Alternative to complete Home UV that requires no electricity. The UF Membrane will physically capture bacteria, rather than kill them like UV. This will require the Membrane to be flushed on a regular basis.
    *
    *
    *
    R0,00
    i h

    Complete Home Ultra Filtration System On A Stand Unit

     The Complete Home Ultra Filtration Solution is a sure way of providing your entire house with high-quality water for drinking and household purposes. It makes use of very fine filtration technology that effectively removes impurities from the water. This filtration process removes 99.9% of all bacteria, viruses, paint pigments, chemicals, pollen, sand, and other impurities.

    With this Option the Big Blues and UF Membrane are pre-built on to a single stand unit, making it easy to move and easy to install with just a single inlet and outlet. The stand bracket also gives the option of either having the system stand on the ground or have it mounted onto a wall.

    The UF system also comes with an automatic flush valve and timer, which you can set to flush the Membrane/s on a regular basis with, instead of having to do it manually.

    Please note the construction time on a system is 2 to 3 working days.

    Benefits:

    • All the water supplied to your house is filtered

    • 99.9% of all bacteria and viruses in the water are removed

    • The system uses a physical barrier to remove bacteria, rather than a chemical one

    • Removes chemicals such as chlorine

    • Can be used to make even the dirtiest water drinkable

    • Filtrated water tastes and smells great

    • Preserve the natural minerals in the water

    • Low running cost

    • No electricity required

    Keep in mind

    • The Ultra Filtration Membrane does not remove any minerals from the source water, and so it will not change the "base" taste of the source water. So if your water has a brackish/salty taste, it will still have this taste after the UF system.

    • The particles that makeup pesticides are too small to be removed by the filters in this filtration unit.

    • The fine membrane of the Ultrafiltration unit removes a large number of particles from the water. As a result, it needs to be flushed once a week to prevent it from becoming clogged with dirt and bacteria.
    • Should the bacteria not be flushed out regularly, it may start to grow on the membrane and ‘biofouling’ may occur.

    • We strongly recommend that an automatic timer be installed, to ensure that the Ultra Filtration Membrane is flushed regularly to prevent blockage.

    • The 5-Micron Sediment Filter and the Activated Carbon block Filter that is used for these units need to be replaced every 6 months.

    • The particles that makeup pesticides are too small to be removed by the filters in this filtration unit. These impurities must be flushed out at least once a week to prevent a blockage from forming.

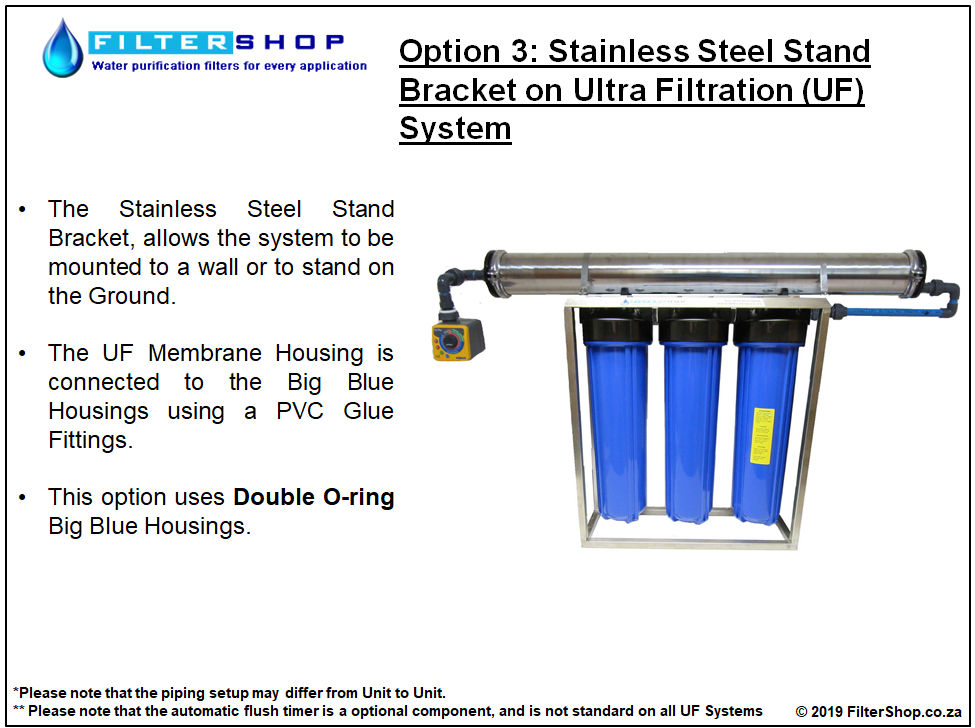

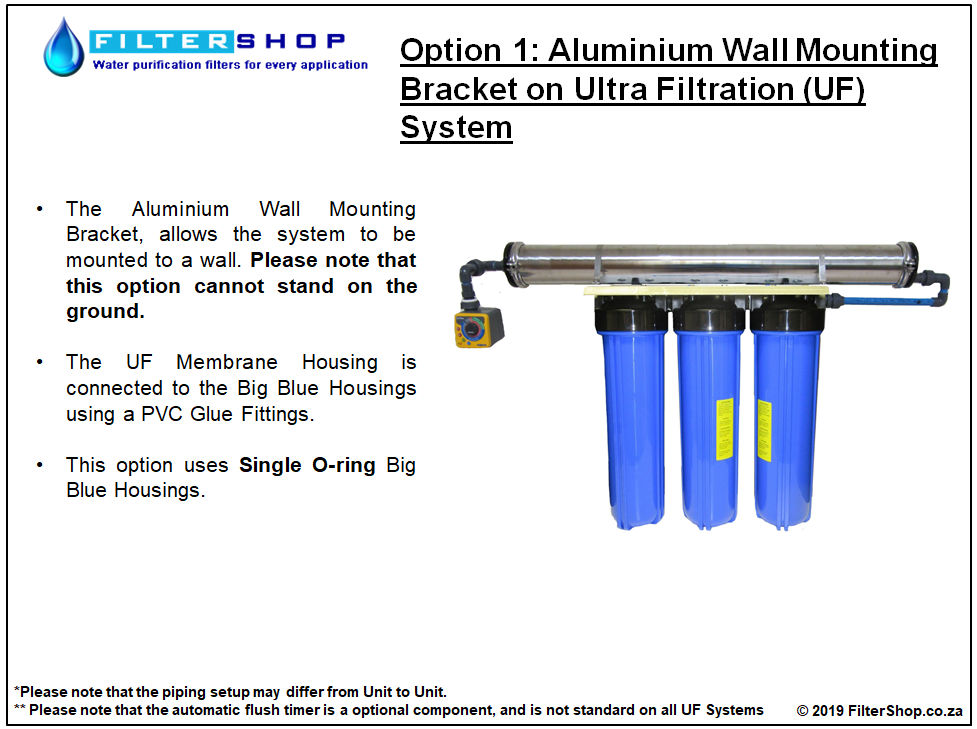

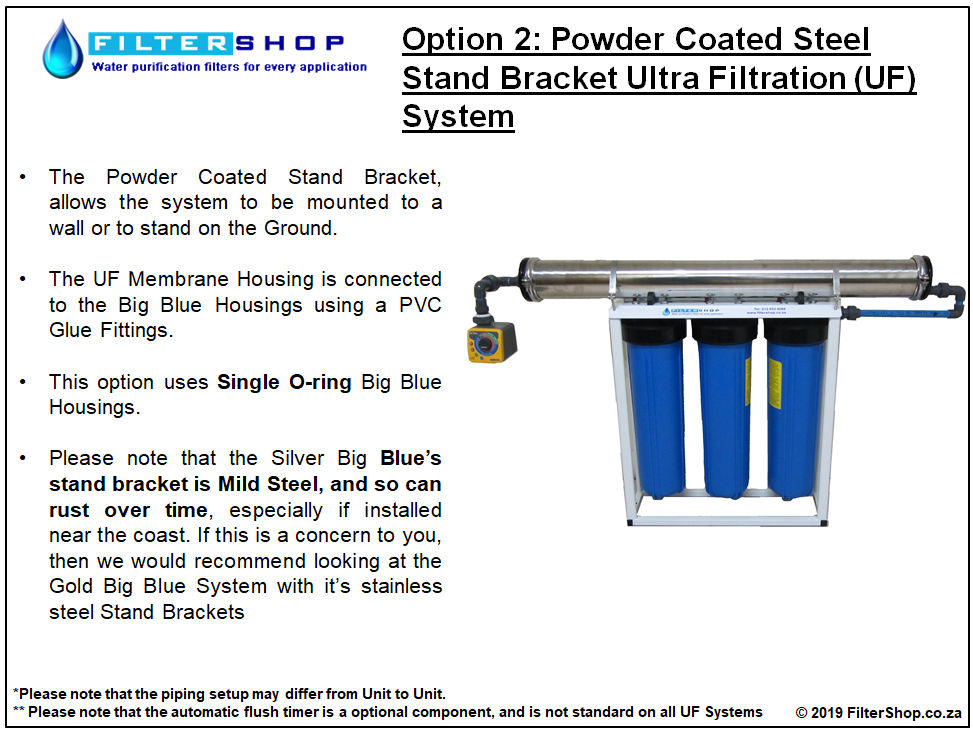

    Bracket / Stand Options for UF System

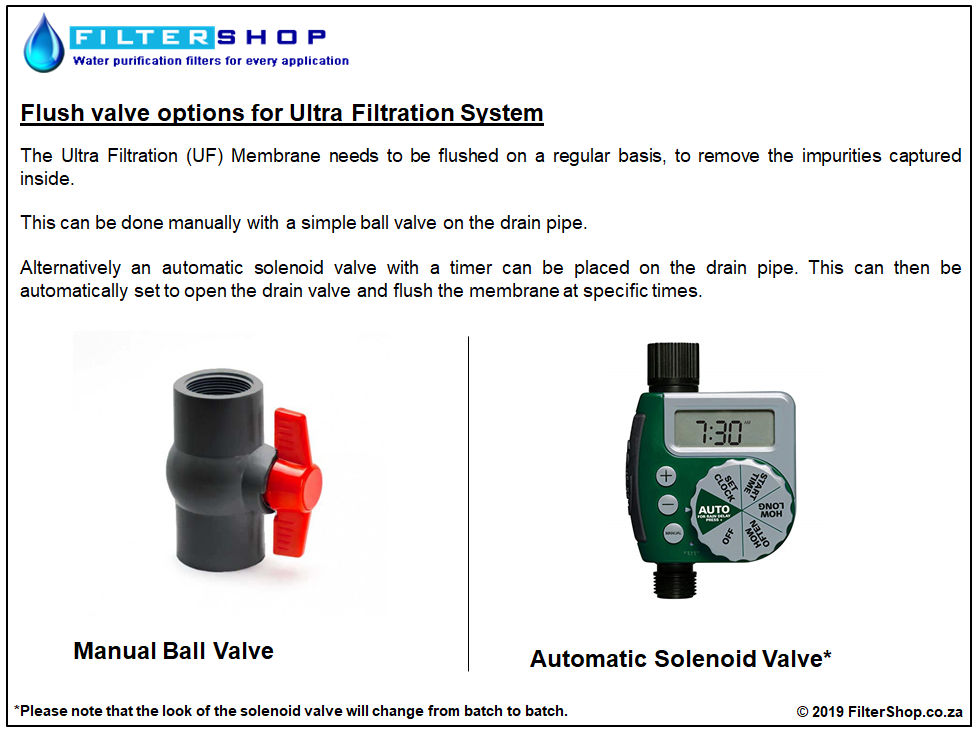

    Flush Valve Options

    Installation of the 1000 LPH Ultra Filtration System on a Stand



    • The UF's Product water can be drawn from either side of the 4040 Stainless Steel Housing, the other side of the Housing would be sealed with stopper/cap. The Cap will be supplied with the system, then you just select which side to seal based on your situation.
    • The Dimensions of each Big Blue Housing (excluding the mounting bracket) are 60cm x 19cm x 19cm.
    • The Dimensions of the 4040 Stainless Steel Membrane Housing are cm x cm x cm.







    Pre-filter Set Options

    There are several different combinations of Filters available for the complete home UF systems. Please see below some information on the different sets, and what each of the filers removes from the water.

    Filter Set Option 1: 5 Micron, Activated Carbon Block, & 1 Micron

    Replacement Filter Costs (Life Span 3 to 6 Months*)

    20" Big Melted Spray (5 Micron) :- R 249.00 (Incl. VAT)

    20" Big Activated Carbon Block :- R 325.00 (Incl. VAT)

    20" Big Melted Spray (1 Micron) :-  R 249.00 (Incl. VAT)

    Total : R 823.00



    Filter Set Option 2: 5 Micron, Premium KDF Cartridge, & 1 Micron

    Replacement Filter Costs (Life Span 3 to 12 Months*)

    20" Big Melted Spray (5 Micron) :- R 249.00 (Incl. VAT)

    20" Big Premium KDF Cartridge :- R 2 400.00 (Incl. VAT)

    20" Big Melted Spray (1 Micron) :-  R 249.00 (Incl. VAT)

    Total: R 2 898.00



    Filter Set Option 3: 1 Micron, Activated Carbon Block, & 0.1 Micron

    Replacement Filter Costs (Life Span 3 to 6 Months*)

    20" Big Melted Spray (1 Micron) :- R 249.00 (Incl. VAT)

    20" Big Activated Carbon Block :- R 325.00 (Incl. VAT)

    20" Big Pleated Filter (0.1 Micron) :-  R 650.00 (Incl. VAT)

    Total: R 1 224.00



    Filter Set Option 4: 1 Micron, Premium KDF Cartridge, & 0.1 Micron

    Replacement Filter Costs (Life Span 3 to 12 Months*)

    20" Big Melted Spray (1 Micron) :- R 249.00 (Incl. VAT)

    20" Big Premium KDF Cartridge :- R 2 400.00 (Incl. VAT)

    20" Big Pleated Filter (0.1 Micron) :-  R 650.00 (Incl. VAT)

    Total: R 3299.00

    Filter Set Option 5: 1 Micron, & 2 x Activated Carbon Blocks

    Replacement Filter Costs (Life Span 3 to 6 Months*)

    20" Big Melted Spray (1 Micron) :- R 249.00 (Incl. VAT)

    20" Big Activated Carbon Block :- R 325.00 (Incl. VAT)

    20" Big Activated Carbon Block :- R 325.00 (Incl. VAT)

    Total: R 899.00



    Filter Set Option 6: 1 Micron, & 2 x Premium KDF Cartridges

    Replacement Filter Costs (Life Span 3 to 12 Months*)

    20" Big Melted Spray (1 Micron) :- R 249.00 (Incl. VAT)

    20" Big Premium KDF Cartridge :- R 2 400.00 (Incl. VAT)

    20" Big Premium KDF Cartridge :- R 2 400.00 (Incl. VAT)

    Total: R 5049.00



    Filter Set Option 7: 5 Micron, 1 Micron, & 0.1 Micron

    *Please keep in mind that this option will not remove any chlorine from water, and is not recommend for municipal source waters.


    Replacement Filter Costs (Life Span 3 to 6 Months*)

    20" Big Melted Spray (5 Micron) :- R 249.00 (Incl. VAT)

    20" Big Melted Spray (1 Micron) :- R 249.00 (Incl. VAT)

    20" Big Pleated Filter (0.1 Micron) :- R 650.00 (Incl. VAT)

    Total: R1 224.00



    *
    *
    *
